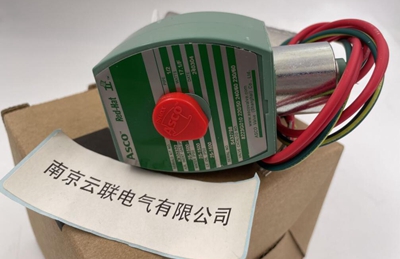

ASCO电磁阀8223G010

二位两通高压不锈钢电磁阀

美国ASCO阿斯卡

简单介绍

ASCO二位两通高压不锈钢电磁阀位二通电磁阀二位二遁电磁阀适用于以蒸汽为加热介质的加热器、散热器、 干燥机及纺织定型机、蒸染机、**真空回潮机、蔬菜烘干机等成套设备的蒸汽管跟进行二位式自动和远程通断切换

接口尺寸: G1/2压力: 25-1500psi类型(通道位置) :先导式

标准:美标公称通径: ASCO(mm)工作温度:常温

实现温度自动控制。电磁阀选用于以水或液体为工作介质，

可自动控制或远程控制水、油、液体等工作介质管路的通断。

由于本阀采用橡胶密封,故对工作介质的清洁度大大减低，

具有启闭迅速.可靠性高等优点。电磁阀为二次开阀的先导式电磁阀 ，其结构主要由导阀和主阀组成,

材质:铸钢流动方向:换向通口数量:两位两通常闭

压力环境:低压零部件及配件:配件

形态:角式规格:代替型号8223G003 (铜) ,线國238610-158-D AC220V,

线园238710 DC24V,线国等级MP-C-080,阀体240523-001-F,WP-C-080连接形式:螺紋

品牌:ASCO适用介质:蒸汽用途:锁闭

电磁阀应保证在电源电压为额定电压的15%-10%波动范围内正常工作。

3.电磁阀安装后，管道中不得有反向压差。并需通电数次，

使之适温后方可正式投入使用。4. 电磁阀安装前应彻底清洗管道。

通入的介质应无杂质。阀前装过滤器。5、 当电磁阀发生故障或清洗时，

为保证系统继续运行，应安装旁路装置。6. 接管时注意。

密封材料不可使用过量,如螺纹连接时，接管外螺纹长度不可超过电磁阀内螺纹的有效长度，

并在外螺纹前端半摞距处用锉刀倒棱，自螺纹2牙处开始缠绕密封

ASCO solenoid valve

Two position two way high-pressure stainless steel solenoid valve

Product model: 8223G010

Product exhibitor: ASCO Asca, USA

A brief introduction

Hot selling ASCO two position two way high-pressure stainless steel solenoid valve two position two way solenoid valve two position two escape solenoid valve suitable for steam heating

Medium heaters, radiators, dryers, textile shaping machines, steaming and dyeing machines, vacuum humidifiers, vegetable dryers, etc

The steam pipes of the complete equipment can be switched between two automatic and remote on-off modes,

Interface size: G1/2 Pressure: 25-1500psi Type (channel position): Pilot operated

Standard: American standard, nominal diameter: ASCO (mm), working temperature: room temperature

Realize automatic temperature control. Electromagnetic valves are selected for use with water or liquid as the working medium,

It can automatically control or remotely control the on-off of working medium pipelines such as water, oil, and liquids.

Due to the use of rubber seals in this valve, the cleanliness of the working medium is greatly reduced,

It has the advantages of fast opening and closing, high reliability, etc. The solenoid valve is a pilot operated solenoid valve with a secondary opening, and its structure mainly consists of a pilot valve and a main valve,

Material: Cast steel Flow direction: Reversing port Quantity: Two positions Two normally closed

Pressure environment: Low pressure components and accessories: Accessories

Form: angled specification: replaces model 8223G003 (copper), wire country 238610-158-D AC220V,

Wire park 238710 DC24V, wire national grade MP-C-080, valve body 240523-001-F, WP-C-080 connection form: threaded

Brand: ASCO Applicable medium: Steam Purpose: Locking

The solenoid valve should ensure normal operation within a fluctuation range of 15% -10% of the rated voltage of the power supply.

3. After the installation of the solenoid valve, there should be no reverse pressure difference in the pipeline. And it needs to be powered on several times,

It can only be officially put into use after being warmed up. 4. Before installing the solenoid valve, the pipeline should be thoroughly cleaned.

The medium introduced should be free of impurities. Install a filter in front of the valve. 5. When the solenoid valve malfunctions or is cleaned,

To ensure the continued operation of the system, a bypass device should be installed. 6. Pay attention when taking over.

Sealing materials should not be used excessively. For example, when connecting with threads, the length of the external thread of the connecting pipe should not exceed the effective length of the internal thread of the solenoid valve,

And use a file to chamfer the front half distance of the external thread, and start wrapping the sealing tape from the second tooth of the thread
